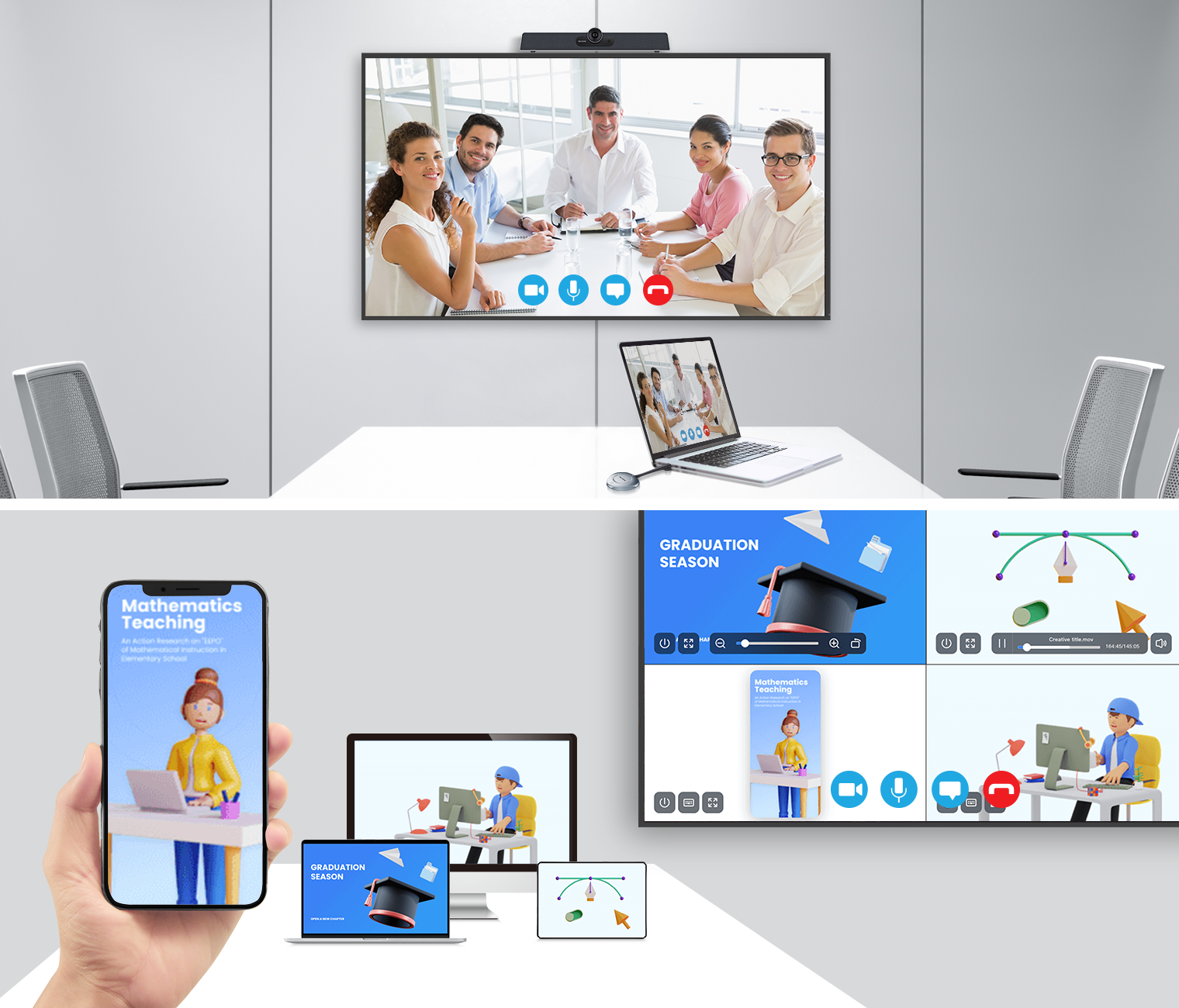

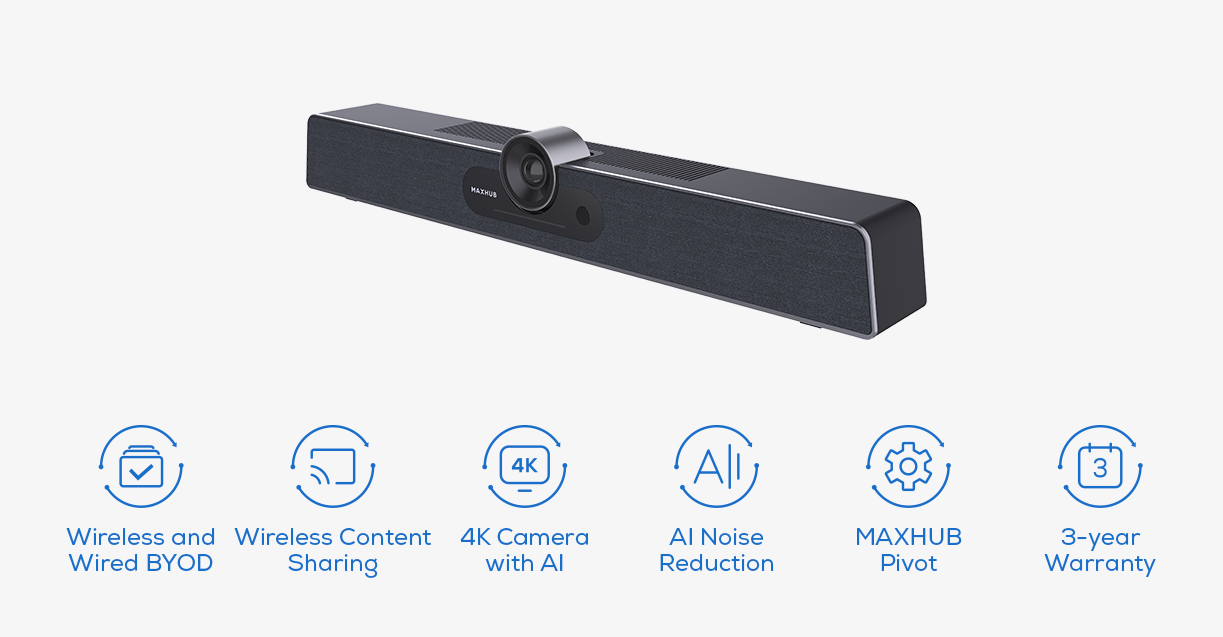

Effortless BYOM
Easily share content and access the UC S15’s camera, microphone, and speaker wirelessly using the MAXHUB Wireless dongle – WT13M* or the MAXHUB Share app.
* Note: WT13M is unavailable in the United States, Spain, and Germany. Additionally, WT13S is not accessible in the US. Please verify availability with your reseller.
Simply connect your laptop to the UC S15 using the USB-C cable provided in the product package. Instantly share content on the room display and seamlessly access the UC S15’s camera, microphone, and speaker.

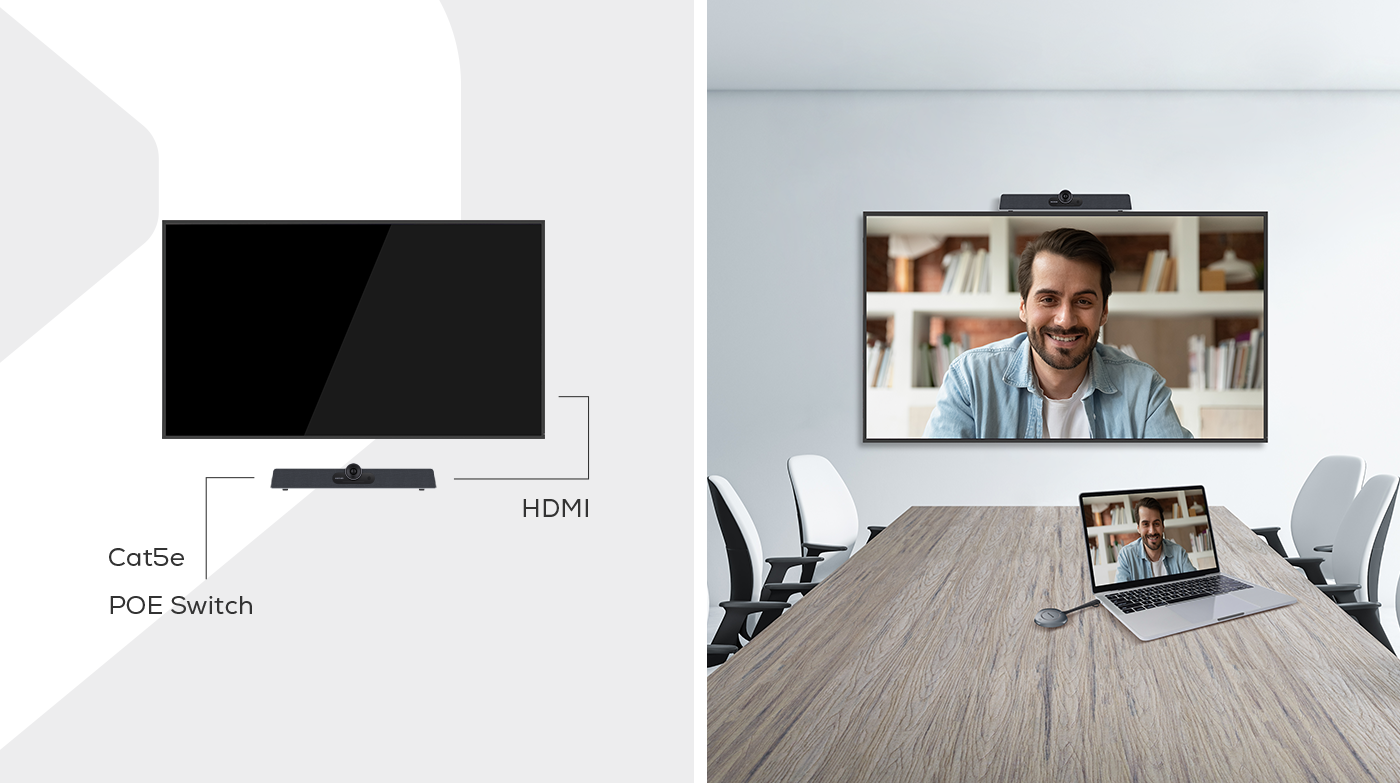

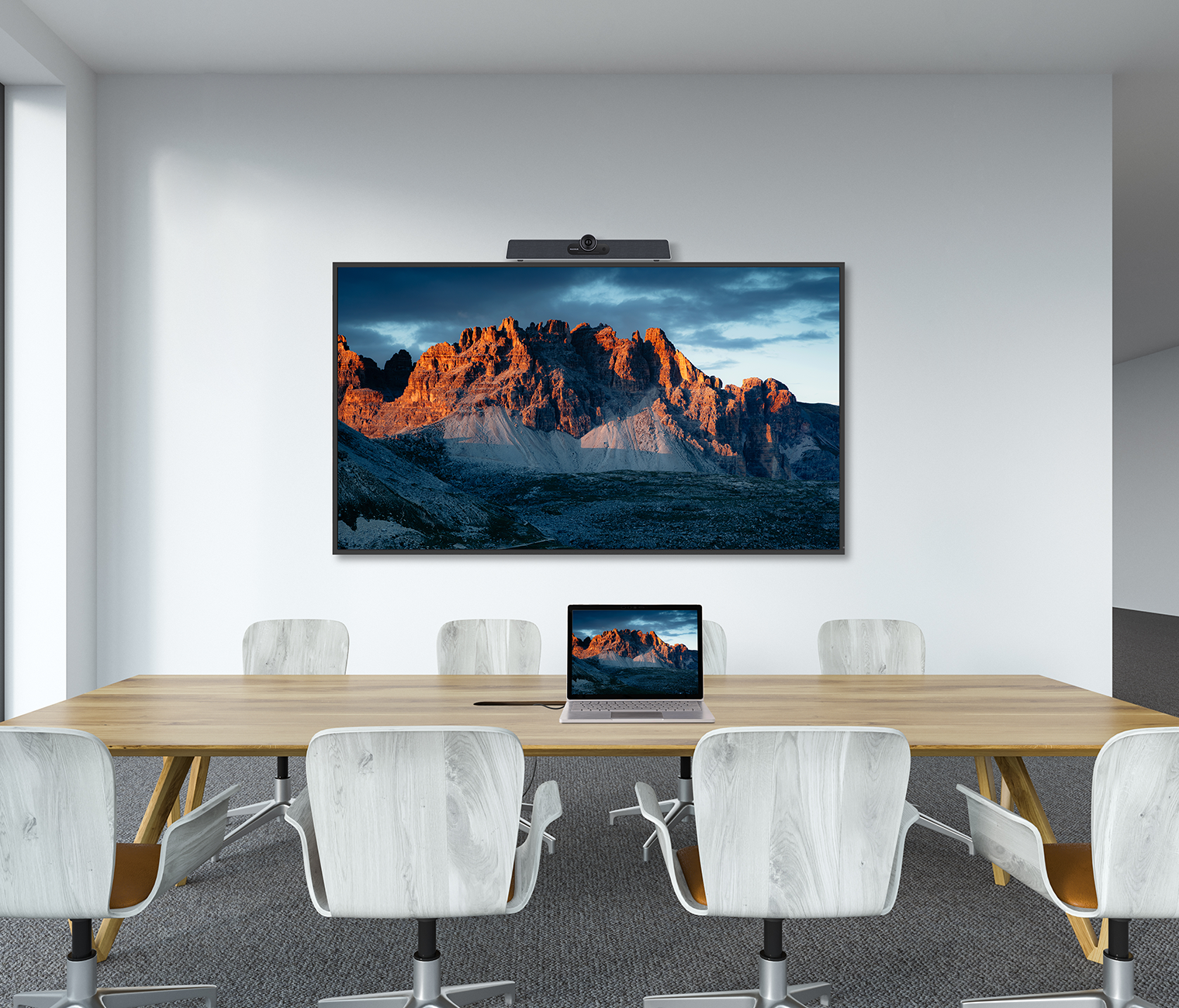

Compact and Simple
The UC S15 is optimized for huddle rooms and small meeting spaces, boasting a compact size and simplified installation.
See and Be Seen, Any Time

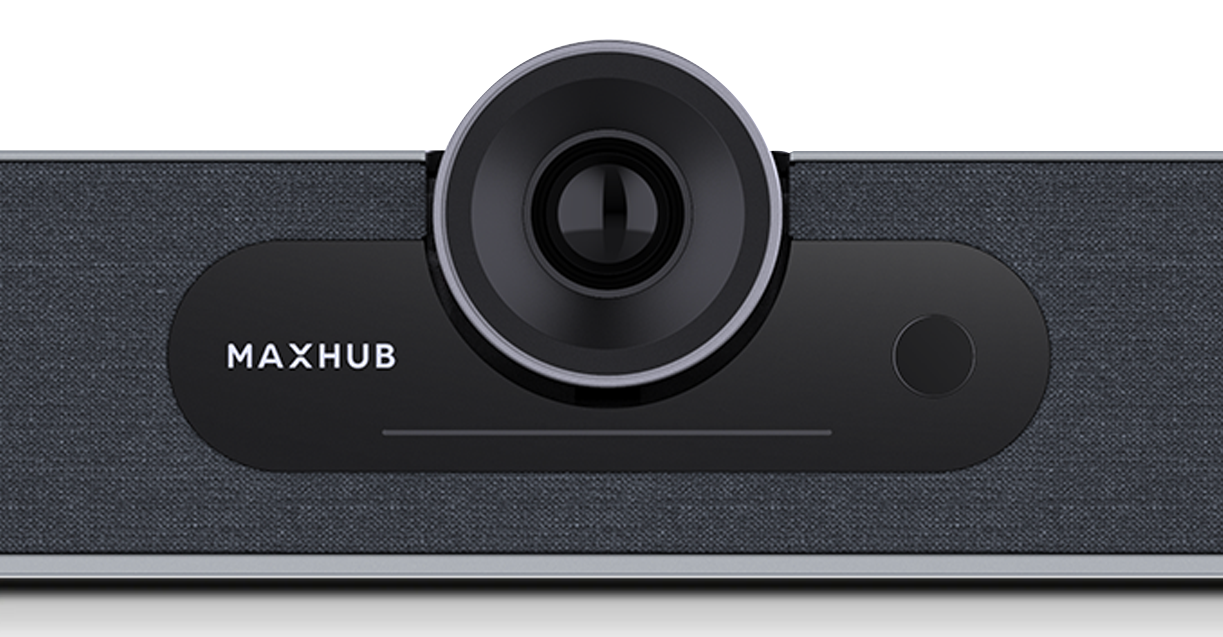

Capture Every Detail
Equipped with a 4K camera and a 120° field of view, it captures the whole room with sharp images.
Auto Framing
Automatically offers the best view via tracking of the number and positions of participants.
Speaker Tracking
Dynamically follows the active speaker in real-time, elevating engagement with a lifelike meeting experience.
Hear and Be Heard, Anywhere
Attention On You, Wherever You Are

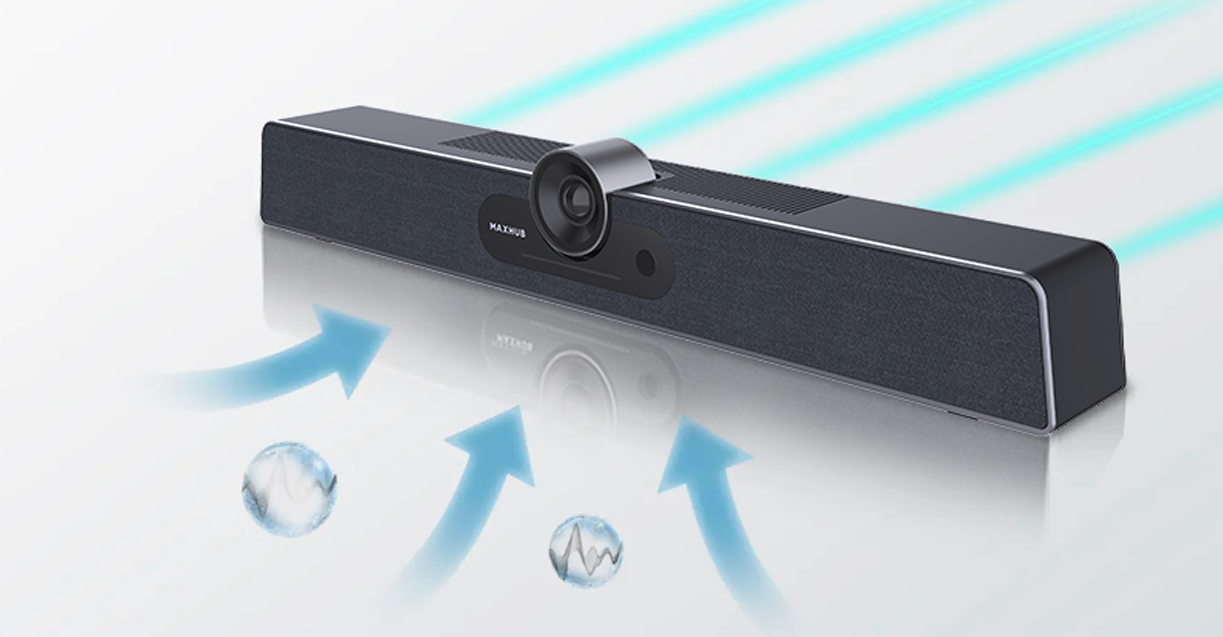

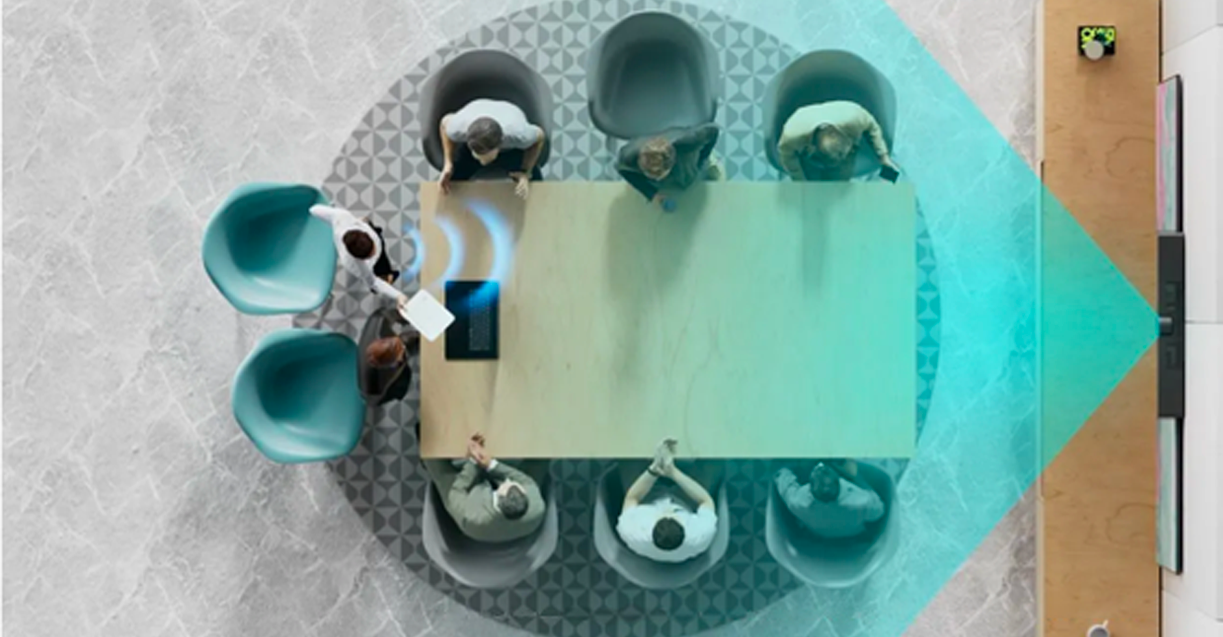

Enhances your communication with 6 intelligent beam-forming microphones, providing full-duplex voice coverage in huddle and small spaces.
AI Noise Reduction
Filters out noise to improve concentration and enhance collaborative experiences, eliminating background noises, no more tapping, typing, or door closing.
Immersive Audio Experience
From intimate chats to group huddles of up to 8, our studio-quality Hi-Fi speaker ensures crystal-clear sound for all. With 8 W+3 W power and a specialized tweeter and woofer design, every voice is heard, every corner filled with immersive sound.
Remote Management

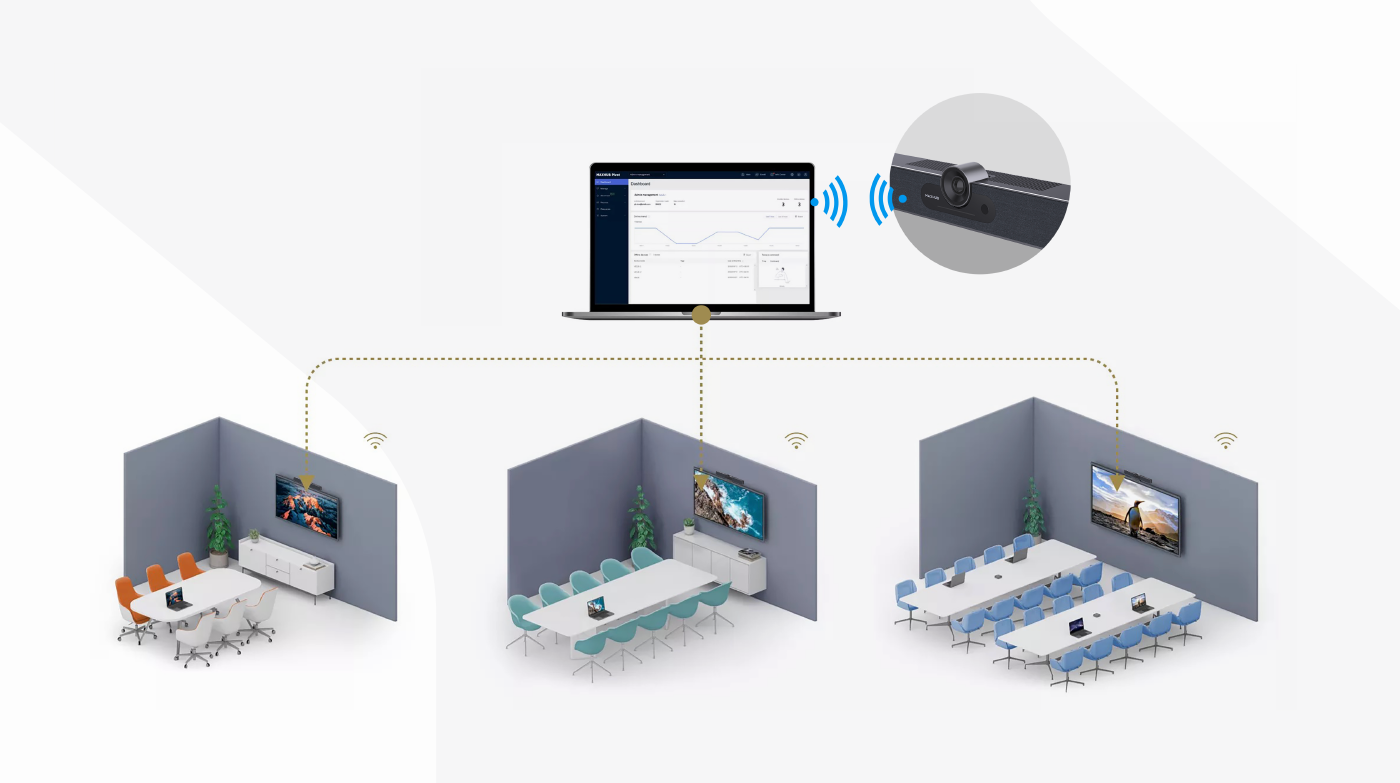

MAXHUB Pivot enables IT managers to effortlessly monitor, control, and update all your meeting room devices remotely.

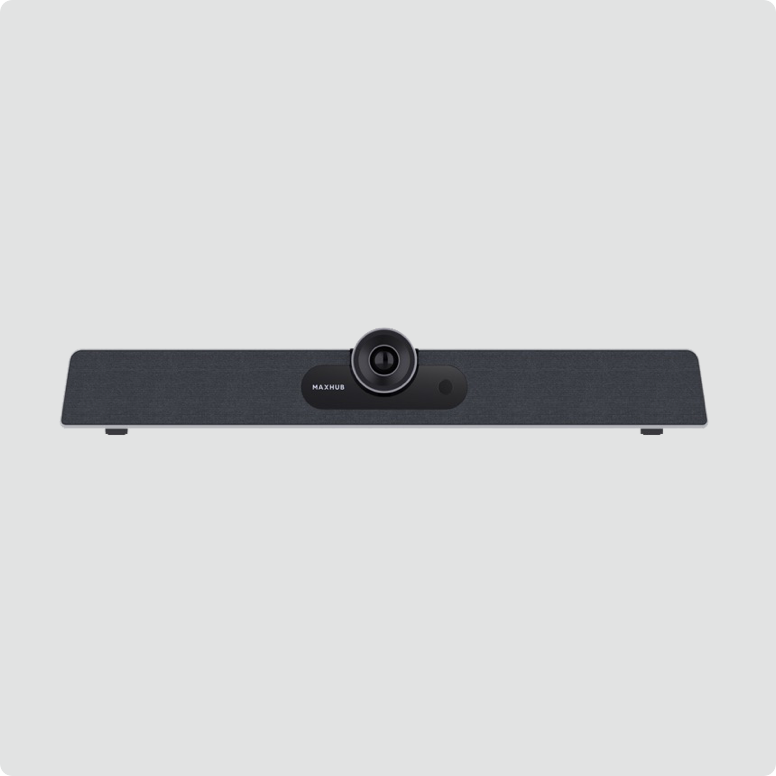

PRODUCT SPECIFICATIONS
| Model | UC S15 |
|---|---|
| Camera | |
| Pixel | 12 M |
| Sensor | 1/2.3-inch 12 MP Sony sensor |
| Field of View | FOV 120° (D) |
| Zoom | 5 x Digital Zoom |
| Video Output(MJPG/H264) | 3840 x 2160@30fps (with USB 3.0 cable) |
| Video Output(NV12/YUY2) | 1080p@30fps , 720@30fps |
| Camera Tilt | ±15° (manually) |
| Camera Features | Auto Framing, Speaker Tracking, Intelligent Focus |
| Audio | |
| Microphone | 6 MEMS Microphone |
| Speaker Output Power | 11W |
| Speaker Volume | 83 dB SPL@1m |
| Sensitivity | >75 dB |
| Speaker Frequency Range | 150Hz ~ 18 KHz |
| Interfaces | |
| 1 x HDMI output (version 1.4) | |
| 1 x USB-A 3.0 (for host connection) | |
| 1 x USB-A 2.0 (for host connection) | |
| 1 x USB-C 3.0 (for device connection) | |
| 1 x RJ45 (Ethernet – for device management and POE) | |
| Kensington Security Lock | |
| 802.11ac Wi-Fi wireless network connection for cloud device management (MAXHUB Pivot) | |
| Power | |
| Power Requirements | DC 12V |
| Max Power Consumption | 24W |
| POE | Supported |
| Accessory in the package | |
| 1 x USB-C 3.0 Cable(with DP support, 1.8 m / 5.9 ft) | |
| 1 x HDMI Cable (1.5 m / 4.9 ft) | |
| 1 x Manual Lens Cover | |
| 1 x Wall-Mount Kits | |
| 1 x Power Adaptor | |
| 1 x Remote Control | |
| 1 x Quick Start Guide | |
| Accessories (optional) | |
| Wireless Dongle | |
| TV Mounting Kit | |
| Warranty | |
| 3 Years | |
